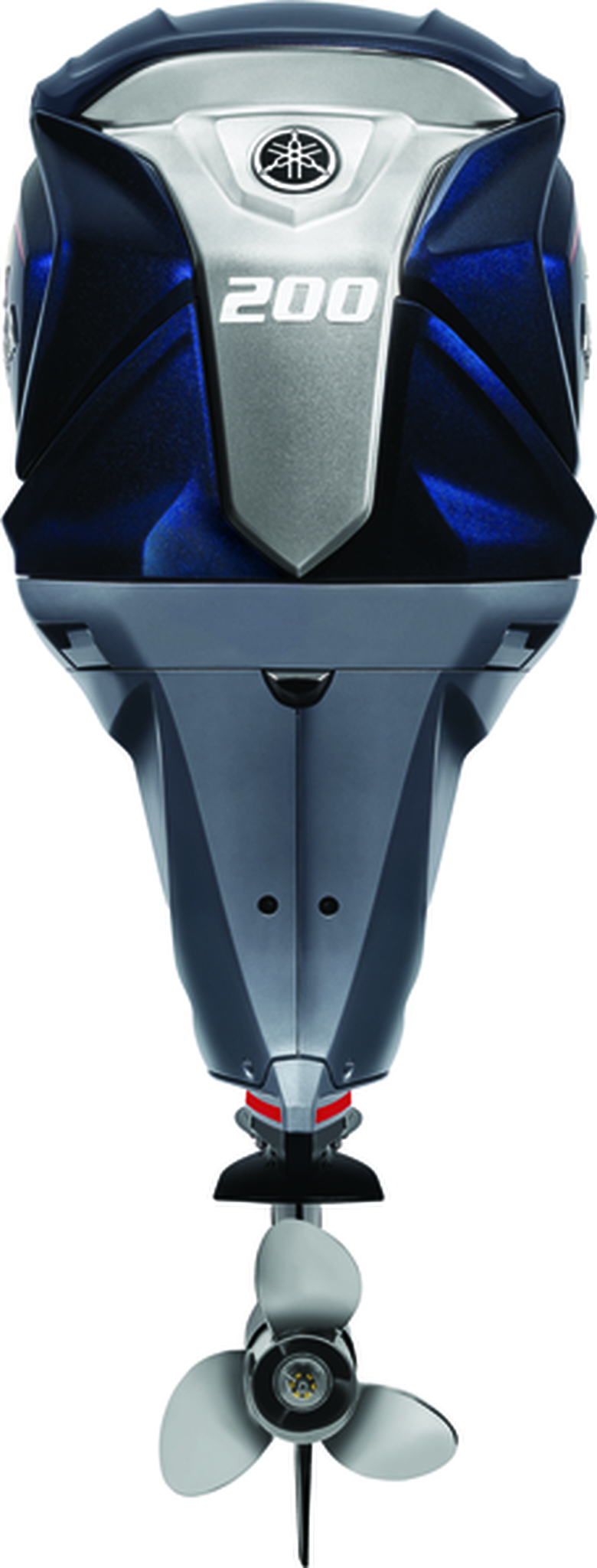

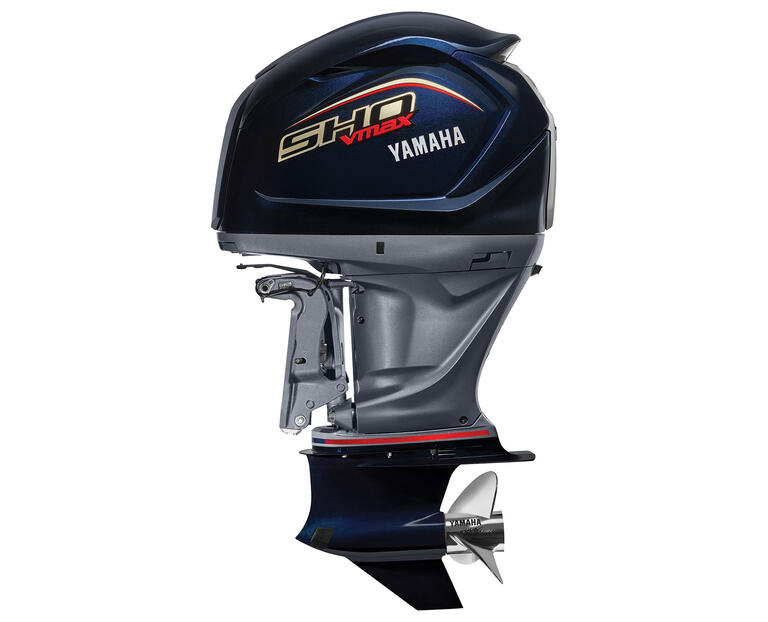

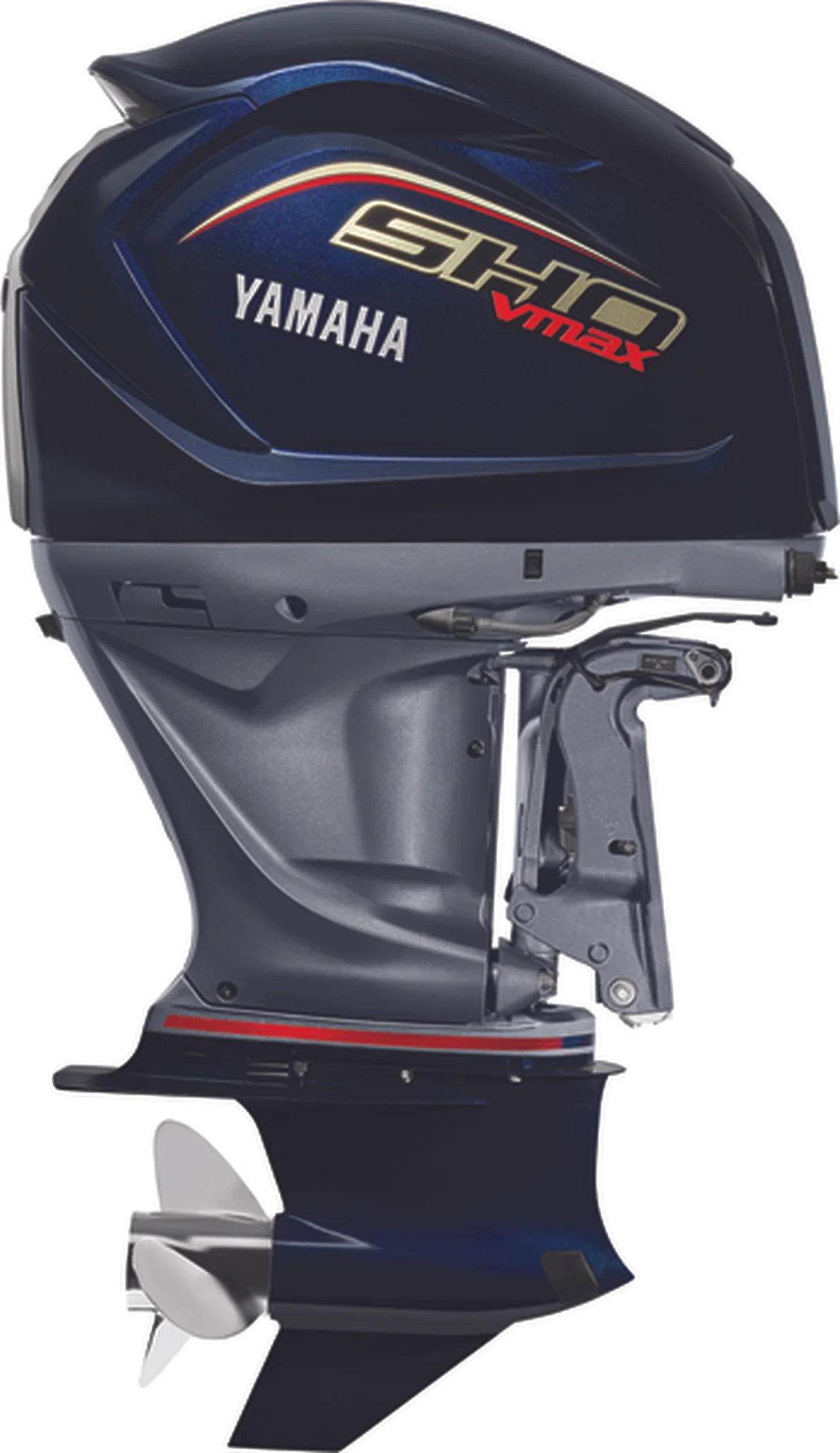

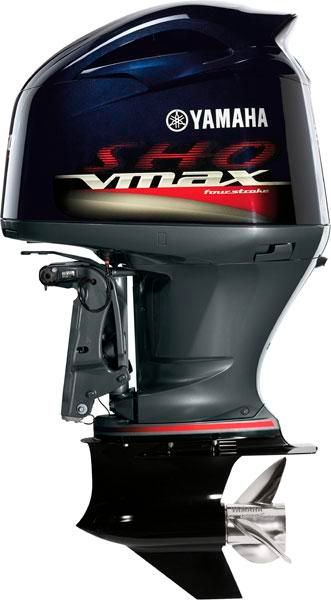

Yamaha VF200 V MAX SHO

The Yamaha VF200 V MAX SHO steps out of the four-cylinder framework and introduces the raw muscle of Yamaha’s legendary 4.2-liter Big Bore V6 platform. Purpose-built for competitive tournament performance, this engine completely bypasses heavy, conventional steel cylinder sleeves. Instead, it utilizes an advanced, thermally applied plasma fusion process on the cylinder walls. This engineering breakthrough allows for larger cylinder bores, yielding an unmatched 4169cc displacement while cutting weight well below traditional two-stroke baselines.

The heart of its aggressive acceleration profile is Yamaha’s Variable Camshaft Timing (VCT) system on a high-breathing, 24-valve Double Overhead Camshaft (DOHC) layout. By dynamically advancing and retarding intake valve timing relative to engine load, the VF200 delivers an explosive hole shot and intense mid-range punch. Shrouded in high-performance V MAX cosmetics, this outboard provides sports-car-like throttle response and blisteringly efficient top-end speed on standard 87-octane fuel.

Models Available:

• VF200LB: High-performance 4.2L V6 configuration with a 20-inch long shaft. The quintessential tournament bass and elite flat skiff platform optimized for maximum low-end torque.

Key Features:

• Displacement: 4169cc (4.2L) Big-Bore 60° V6 (DOHC 24-Valve)

• Shaft: Long (508mm / 20″) or Extra-Long (635mm / 25″)

• Control Type: Remote Mechanical (Traditional throttle/shift cables)

• Fuel system: Electronic Fuel Injection (EFI) with single 75mm electronically controlled throttle valve

• Alternator Output: Up to 70 Gross Amps (Immense capability for multi-graph sonar arrays, shallow water anchors, and livewells)

• Weight: approx. 240 kg (529 lbs) for the 20″ configuration — hyper-light for a 4.2L V6

• Cylinder Layout: Sleeveless plasma-fused bores (60% harder than steel, optimized thermal dissipation)

• Command Link compatibility with integrated Variable Trolling Control

Ideal For: Professional fiberglass bass boats, heavy deep-V tournament aluminum boats, tournament bay configurations, and performance multi-species platforms.
